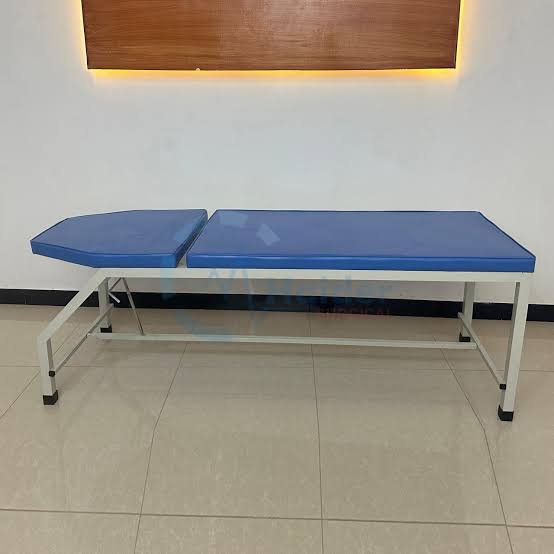

Examination Couch A26

Examination Couch A26 (Standard Medical Couch)
The Examination Couch A26 is typically a fixed-height or manually adjustable medical table designed for general patient assessments, examinations, and minor clinical procedures in hospitals, clinics, and doctor’s offices. It balances essential clinical utility with patient comfort and hygienic maintenance.
I. 🧱 Core Construction and Stability
Frame: Constructed from durable Mild Steel (MS) or Tubular Steel with a high-quality, corrosion-resistant Epoxy Powder Coated finish (often white or light grey) for longevity and ease of cleaning.
Stability: Mounted on four sturdy legs, often equipped with protective rubber feet or adjustable stumps to ensure maximum stability and prevent sliding during patient transfers or examinations.
Weight Capacity: Designed for a high safe working load, typically supporting patients up to 150 kg to 200 kg (330 lbs to 440 lbs).
II. 🛌 Patient Surface and Comfort (2-Section Design)
The couch is generally a two-section design, providing flexibility for patient positioning:
Upholstery: Features a comfortable, high-density foam mattress (often 2 to 3 inches thick) to reduce pressure points during examination.
Cover Material: The upholstery is covered in fire-retardant, high-tear-resistant, and waterproof vinyl (or Rexine). This material is non-absorbing, stain-resistant, and can be easily wiped clean with hospital-grade disinfectants for optimal hygiene.
Backrest Adjustment: The main feature of the two-section design is the adjustable backrest/headrest. This section can be manually raised from 0^{circ} (flat) to angles up to 70^{circ} or 75^{circ} using a secure manual gear or ratchet mechanism.
III. 📏 Typical Dimensions
While specific dimensions vary by manufacturer, a standard A26 model often conforms to these measurements:
Length (Overall): 1800 mm to 1900 mm (approx 71 to 75 inches)
Width: 600 mm to 680 mm (approx 24 to 27 inches)
Height (Fixed): approx 750 mm to 800 mm (approx 30 to 32 inches)
IV. 🛠️ Optional or Add-on Accessories
Depending on the specific variant of the A26, it may include features to enhance functionality:
Paper Roll Holder: A bracket mounted at the head or foot end to hold disposable paper rolls for quick surface sanitation between patients.
Storage: Some models may feature a shelf or a small lockable drawer underneath the surface.
Casters: May be equipped with small, retractable casters for occasional movement within the clinic, locked in place by foot pedals or levers.
